Steel Detailing and BIM services

Steel Detailing Online provides steel detailing services and Building Information Modeling (BIM). Committed to professional service with decades of experience to the structural steel community.

Project types include:   Commercial, industrial, hotels-hospitality, educational-schools K-12, healthcare-hospitals-institutional, libraries, fire departments, police stations, civic-government facilities, restaurants, worship centers, stair towers, parking & storage, performing arts, custom residential, urban living developments, casinos, waterfront development, park and recreation facilities, DOT, DOD.

Project Delivery

Erection Drawings

Erection Drawings


Projects are modeled in Advance Steel with AEC suite licensed seats.

Drawings are detailed in 2D & 3D CAD and submitted in PDF format.

 Design build stairs are also an available service.

Erection Drawings

Erection Drawings

Erection Drawings


Erection plans are developed with the understanding other trades will play an important role of structural steel locations. Using both designs from structural and architectural, we clearly interpret the intent and incorporate RFIs at this stage during project modeling.

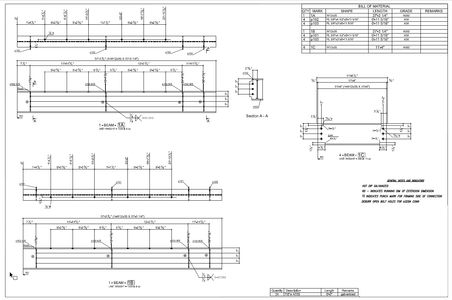

Shop Drawings

Additional files & Lists

Additional files & Lists


Shop drawings provided in PDF format.

See more with details with samples.

Additional files & Lists

Additional files & Lists

Additional files & Lists


Software can also generate:

Material list, CNC files in DSTV & DXF format.

Navisworks files, nwd, dwg, dwf, ifc, sdnf, smlx, kiss & others
